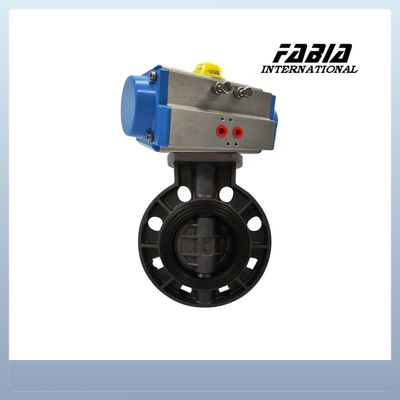

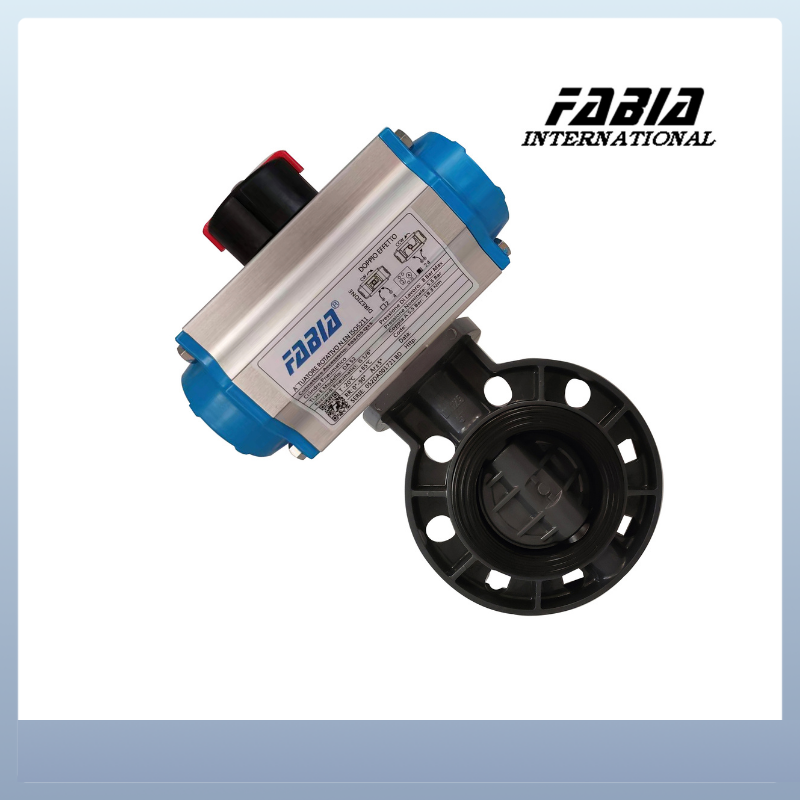

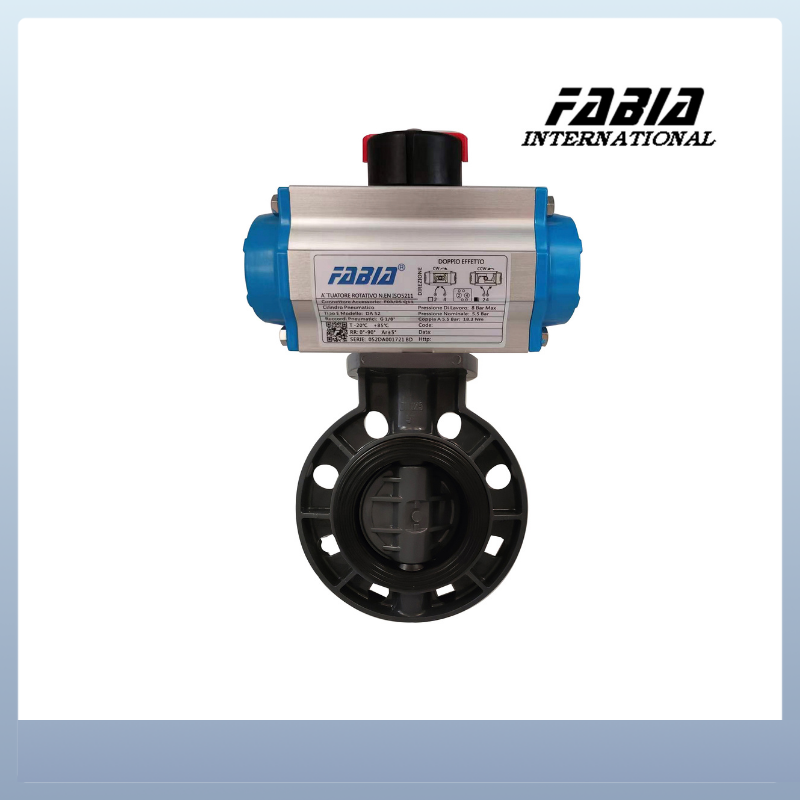

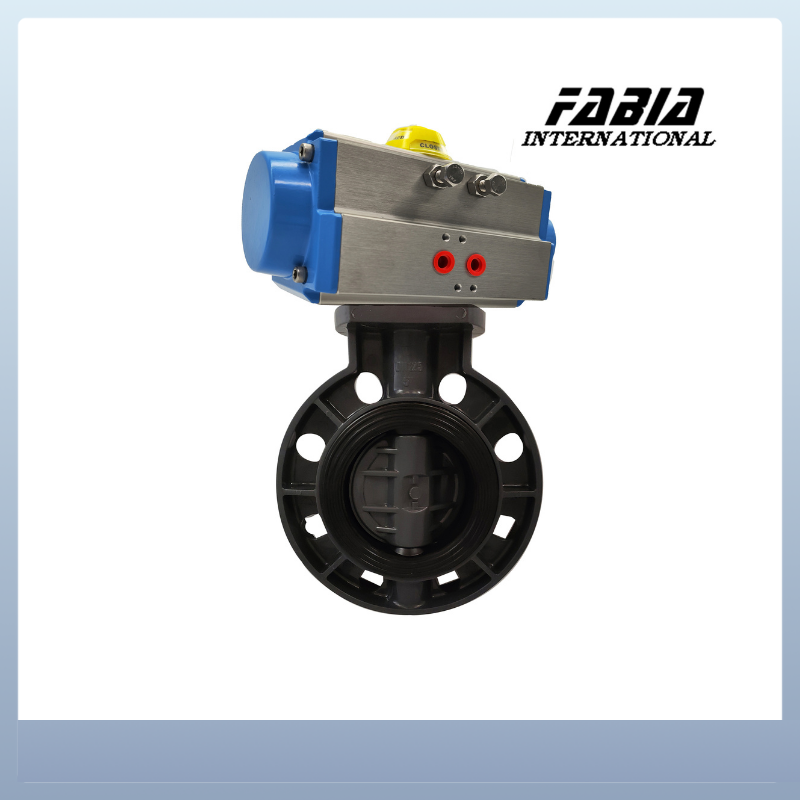

Pneumatic Soft Seal Butterfly Valve Clamp PVC Valve Lightweight and Cost-Effective

  • Pneumatic Soft Seal Butterfly Valve Clamp PVC Valve Lightweight and Cost-Effective
  • Pneumatic Soft Seal Butterfly Valve Clamp PVC Valve Lightweight and Cost-Effective
  • Pneumatic Soft Seal Butterfly Valve Clamp PVC Valve Lightweight and Cost-Effective
  • Pneumatic Soft Seal Butterfly Valve Clamp PVC Valve Lightweight and Cost-Effective
  • Pneumatic Soft Seal Butterfly Valve Clamp PVC Valve Lightweight and Cost-Effective
Lugar de origem CHINA
Marca FABIA
Certificação ISO9001,CE,CCS,DNV
Número do modelo 1/8 polegada ～ 36 polegadas
Documento Folheto PDF do produto
Quantidade de ordem mínima 1 conjunto
Preço Negociável
Detalhes da embalagem Caixas/caixas de madeira
Tempo de entrega 15-30 dias de trabalho
Termos de pagamento L/C, D/A, D/P, T/T, MoneyGram, Western Union
Habilidade da fonte 100-1000 set por semana

Contacte-me para amostras e cupons grátis.

Whatsapp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

Se você tem algum interesse, nós fornecemos a ajuda online de 24 horas.

x
Detalhes do produto
Nome do produto Válvula de borboleta de pinça pneumática Tipo de válvula Borboleta pneumática
Material da válvula PVC Motor de válvula Pneumático
Conexão da válvula Grampo Vedação da válvula EPDM
Disco da válvula PVC Pressão da válvula PN16
Temperatura da válvula -30℃~+135℃
Deixe um recado
Descrição de produto

FABIA Soft Seal Pneumatic Clamp Butterfly Valve



1. Description:



Used in petroleum, chemical, light industry, pharmaceutical, paper, automobile and other industrial automatic control system for remote centralized control or local control equipment.



Can be widely used in petroleum, chemical, light industry, pharmaceutical, paper, automobile and other industrial automatic control system for remote centralized control or local control.



2. Specification:



FABIA Valve Parameter List
Valve type: Soft Seal Pneumatic Clamp Butterfly Valve
Size: 2 inch ～ 36 inch
Material: WCB,GGG40,FCD,SS304,SS304L,SS316,SS316L,ST37(Q235B),SS410
Connection type: Butt Clamp/Flange Connection
Driving model: Manual/Worm gear drive/Pneumatic/Electric
Pressure rating: PN0.1～PN16
Temperature: -40℃～1000℃
Model: FB-D..........



3. Features:



  • Pneumatic butterfly valve, is in the introduction of foreign advanced technology on the basis of special design, carefully manufactured products.
  • Butterfly valve with travel limit switch, solenoid valve, triplet and 0.4-0.7MPa air source can realize switching operation, and send two pairs of passive contact signals to indicate the switch of the valve.
  • Using intelligent control and positioning, with domestic electrical valve positioner, input 4-20mADC signal and 0.4-0.7MPa air source can achieve intelligent control, to achieve the adjustment of pressure, flow, temperature, liquid level and other parameters.
  • Powered by compressed air, and the valve stem drives the spool to rotate 90 ° C in the valve body, which can realize the fully open - fully closed action.
  • Product is divided into metal seal and soft seal according to its sealing performance.
  • Advantages of compact structure, small size, reliable operation, good sealing, easy maintenance, convenient installation and strong adaptability.





Pneumatic Soft Seal Butterfly Valve Clamp PVC Valve Lightweight and Cost-Effective 0

Pneumatic Soft Seal Butterfly Valve Clamp PVC Valve Lightweight and Cost-Effective 1
