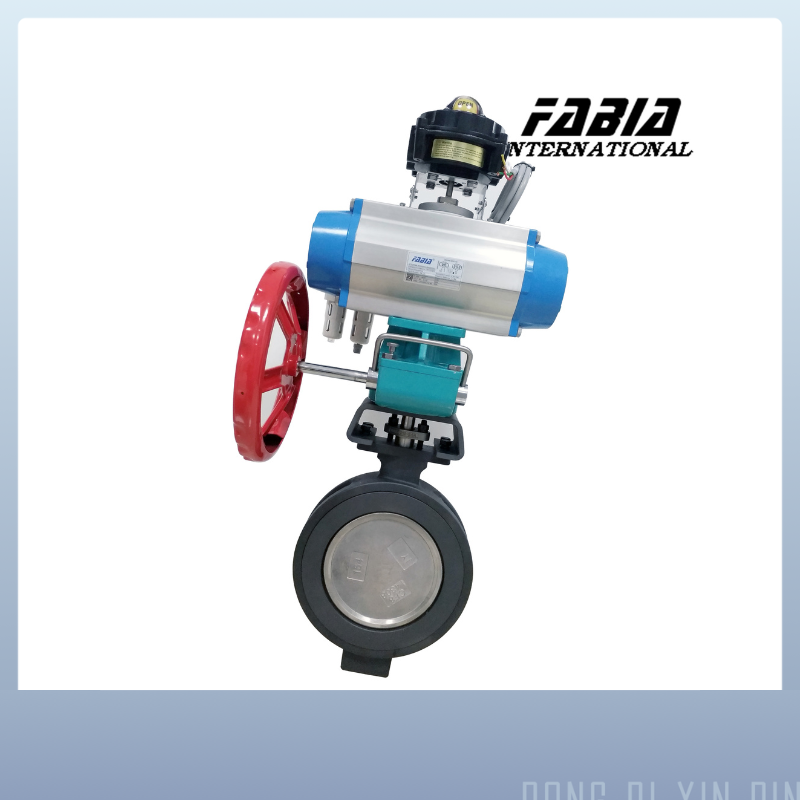

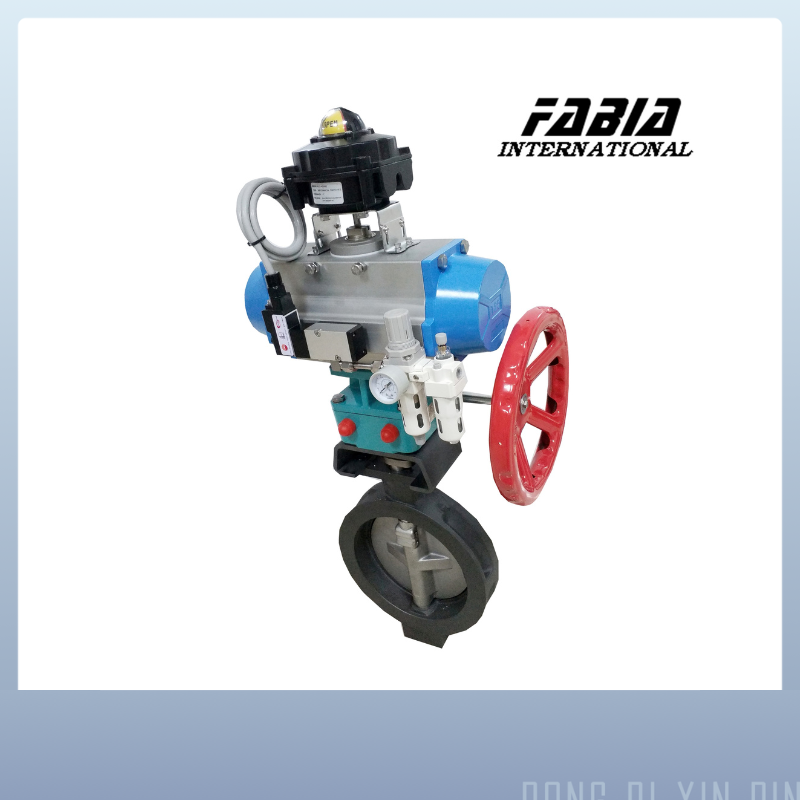

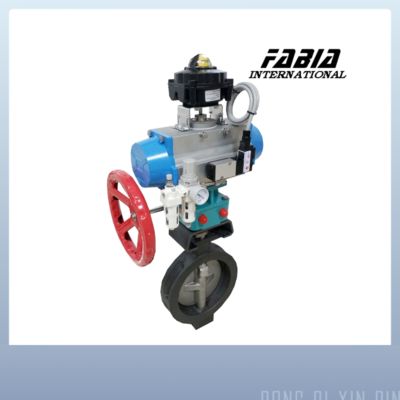

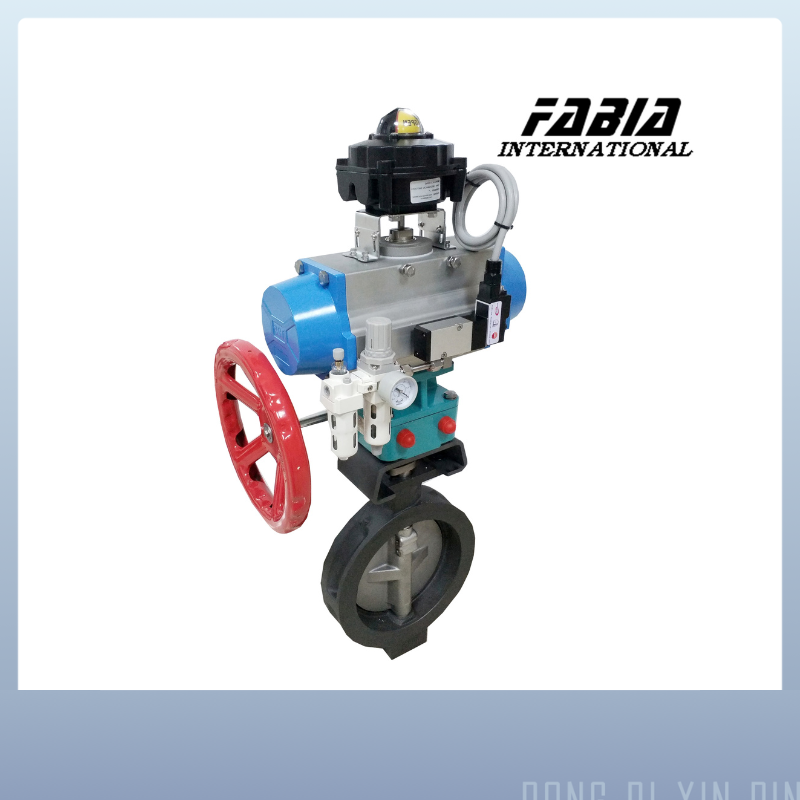

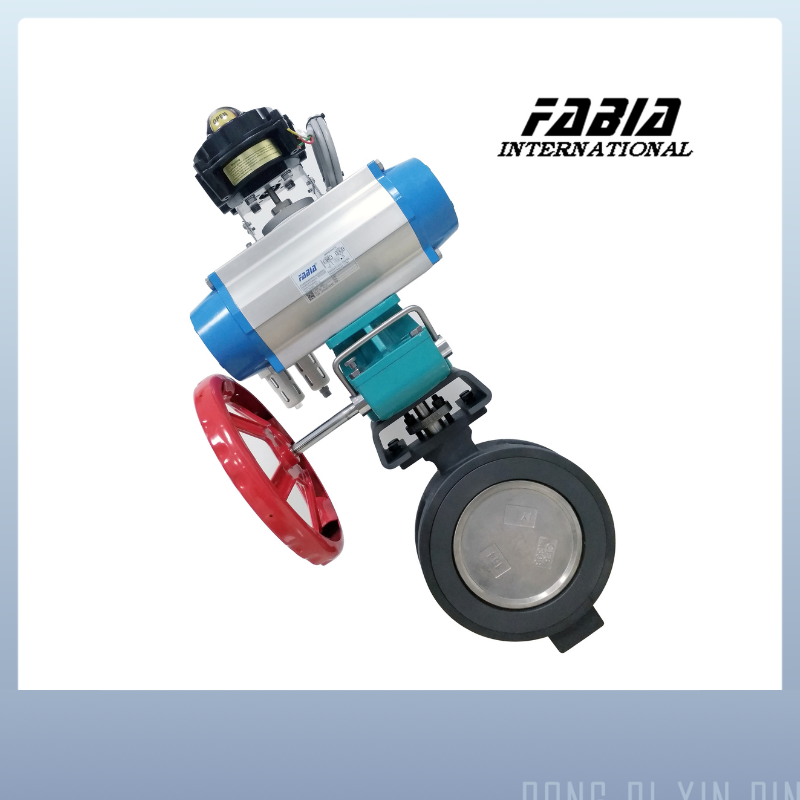

Hard Sealed Pneumatic Actuator Operated Butterfly Valve Small Fluid Resistance Source manufacturer

  • Hard Sealed Pneumatic Actuator Operated Butterfly Valve Small Fluid Resistance Source manufacturer
  • Hard Sealed Pneumatic Actuator Operated Butterfly Valve Small Fluid Resistance Source manufacturer
  • Hard Sealed Pneumatic Actuator Operated Butterfly Valve Small Fluid Resistance Source manufacturer
  • Hard Sealed Pneumatic Actuator Operated Butterfly Valve Small Fluid Resistance Source manufacturer
  • Hard Sealed Pneumatic Actuator Operated Butterfly Valve Small Fluid Resistance Source manufacturer
Lugar de origem CHINA
Marca FABIA
Certificação ISO9001,CE,CCS,DNV
Número do modelo 1/8 polegada ～ 36 polegadas
Documento Folheto PDF do produto
Quantidade de ordem mínima 1 conjunto
Preço Negociável
Detalhes da embalagem Caixas/caixas de madeira
Tempo de entrega 15-30 dias de trabalho
Termos de pagamento L/C, D/A, D/P, T/T, MoneyGram, Western Union
Habilidade da fonte 100-1000 set por semana

Contacte-me para amostras e cupons grátis.

Whatsapp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

Se você tem algum interesse, nós fornecemos a ajuda online de 24 horas.

x
Detalhes do produto
Nome do produto Válvula de borboleta de pinça pneumática Tipo de válvula Borboleta
Material Aço carbono Atuação da válvula Pneumático
Tipo de conexão da válvula conexão da braçadeira Diâmetro da válvula borboleta DN15-600
Aplicação da válvula Água/óleo/gás Pressão da válvula PN10-16
Vedação da válvula PTFE/EPDM Temperatura da válvula -30℃~+150℃
Deixe um recado
Descrição de produto

FABIA  Hard Sealed Pneumatic Butterfly Valve Small Fluid Resistance


1. Description:


Butterfly valve is suitable for food. Medicine. Petrochemicals. A power plant. A steel mill. Industrial environmental protection water treatment and high-rise buildings.


Best device for regulating flow and cutting off fluid on the supply and drainage pipe.


2. Specification:


FABIA Valve Parameter List
Valve type: Small Fluid Resistance Hard Sealed Pneumatic Butterfly Valve
Size: 2 inch ～ 36 inch
Material: WCB,GGG40,FCD,SS304,SS304L,SS316,SS316L,ST37(Q235B),SS410
Connection type: Butt Clamp/Flange Connection
Driving model: Manual/Worm gear drive/Pneumatic/Electric
Pressure rating: PN0.1～PN16
Temperature: -40℃～1000℃
Model: FB-D..........


3. Features:


  • Small fluid resistance, large effective flow area when the large diameter pneumatic disc valve is fully opened, opening and closing quickly and labor saving, the disc can be rotated 90 angles to complete the opening and closing,
  • Because the medium force of the disc hand on both sides of the rotating shaft is close to equal, and the torque generated is opposite, so the opening and closing torque is small, and a good seal can be achieved under low pressure.
  • Sealing materials of the disc valve are diacene rubber , fluororubber , food With rubber, lined with tetrafluoroethylene, the sealing performance is good, and the hard seal disc valve is a soft and hard laminated metal sheet with the heavy advantages of metal hard seal and elastic seal, and has excellent sealing performance at low temperature.





Hard Sealed Pneumatic Actuator Operated Butterfly Valve Small Fluid Resistance Source manufacturer 0

Hard Sealed Pneumatic Actuator Operated Butterfly Valve Small Fluid Resistance Source manufacturer 1
