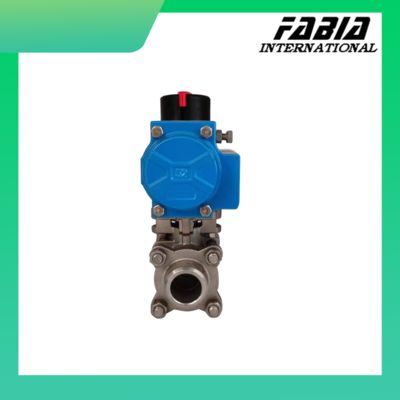

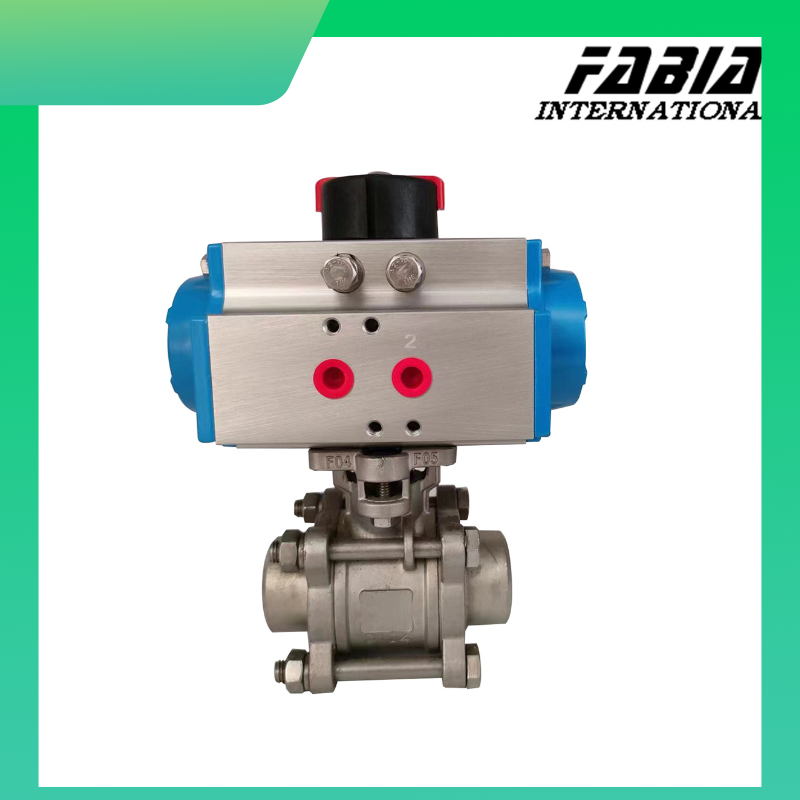

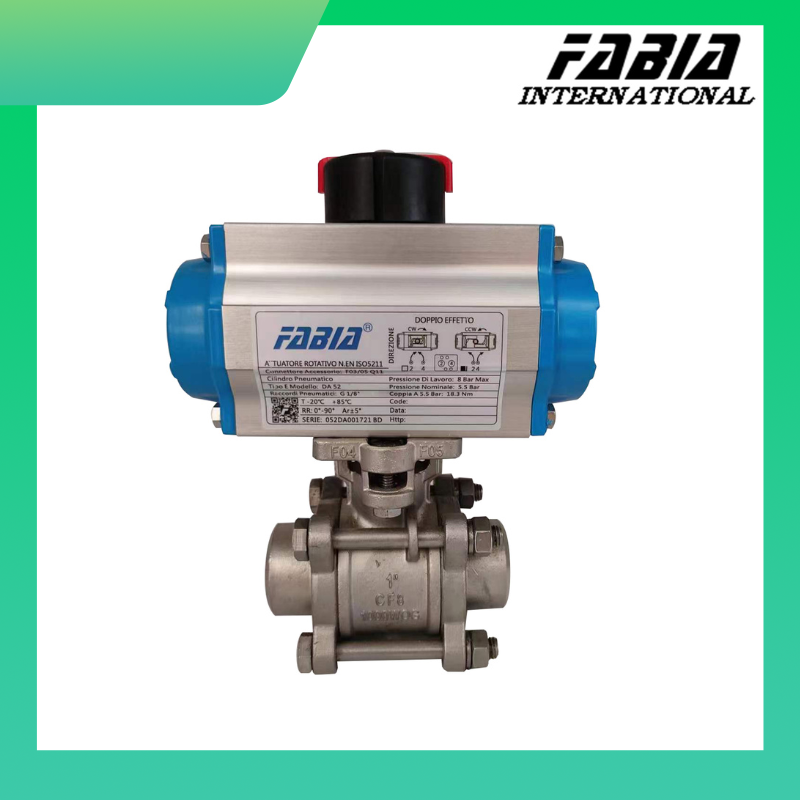

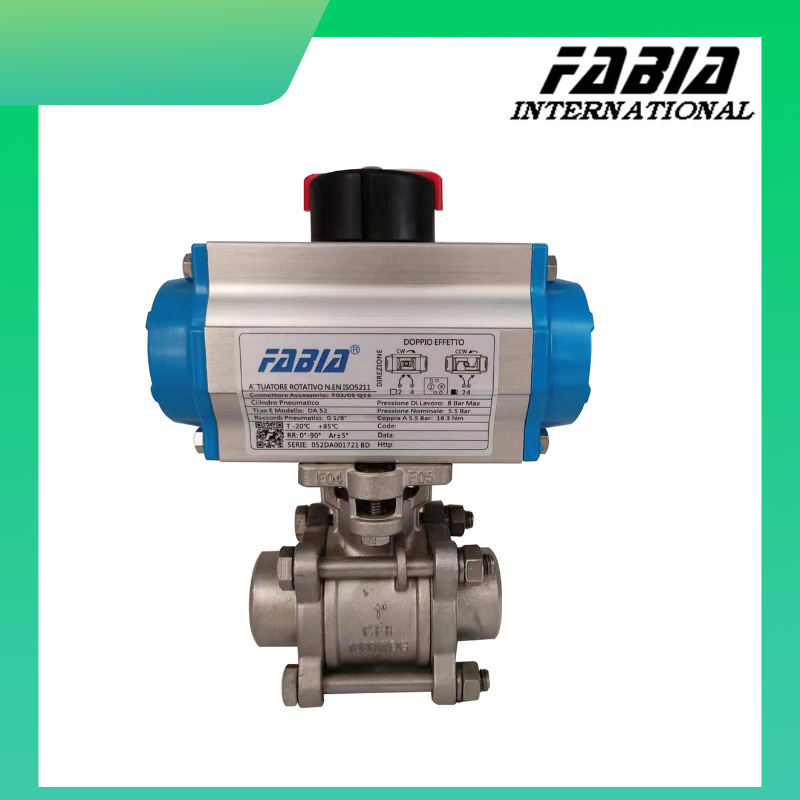

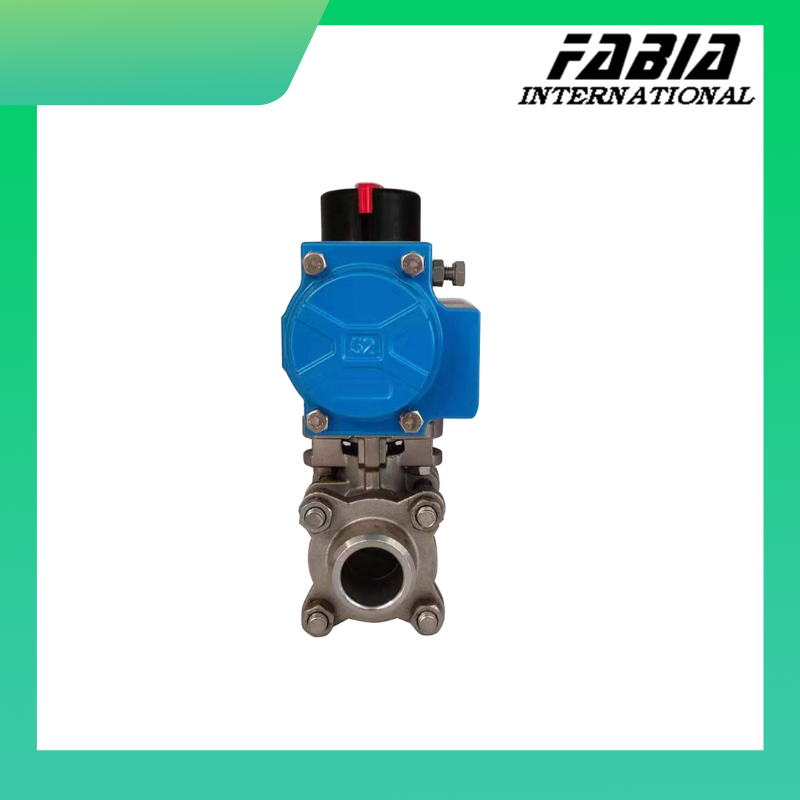

Pneumatic Ball Valve Air Actuated Stainless Steel Tooth Two Way Internal
| Lugar de origem | CHINA |
|---|---|
| Marca | FABIA |
| Certificação | ISO9001,CE,CCS,DNV |
| Número do modelo | 1/8 polegada ～ 36 polegadas |
| Documento | Folheto PDF do produto |
| Quantidade de ordem mínima | 1 conjunto |
| Preço | Negociável |
| Detalhes da embalagem | Caixas/caixas de madeira |
| Tempo de entrega | 15-30 dias de trabalho |
| Termos de pagamento | L/C, D/A, D/P, T/T, MoneyGram, Western Union |
| Habilidade da fonte | 100-1000 set por semana |
Contacte-me para amostras e cupons grátis.
Whatsapp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
Se você tem algum interesse, nós fornecemos a ajuda online de 24 horas.
xDetalhes do produto
| Material da válvula | Aço inoxidável | Controle da válvula | Pneumático |
|---|---|---|---|
| Conexão da válvula | Rosqueado | Nome do produto | Válvula de esfera pneumática de aço inoxidável |
| Pressão da válvula | PN16-40 | Tipo de válvula | Válvula de esfera pneumática |
| Temperatura da válvula | -20 ℃ ~+150 ℃ |
Descrição de produto
FABIA Stainless Steel Pneumatic Ball Valve Air Actuated Two Way Internal Tooth
1. Description:
Characteristics of pneumatic internal ball valve: angular stroke output torque, open quickly, stable and reliable, widely used.
2. Specification:
| FABIA Valve Parameter List | ||
| Valve type: | Stainless Steel Pneumatic Ball Valve Air Actuated Two Way Internal Tooth | |
| Size: | 1/8 inch ～ 8 inch | |
| Material: | WCB,Q235B,2507,A105,CF8(304),CF8M(316),CF3M (316L),CF3(304L),PVC,ZG1Cr18Ni9Ti,ZG1Cr18Ni12Mo2Ti | |
| Connection type: | Welded connection/flange connection/thread connection/clamp connection | |
| Driving model: | Manual/Worm gear drive/Pneumatic/Electric | |
| Pressure rating: | PN1.0～PN64,ANSI CLASS 150-900,JIS10-20K； | |
| Temperature: | -196℃～540℃ | |
| Model: | FB-Q.......... | |
3. Features:
- Fluid resistance is small, pneumatic ball valve is one of the least fluid resistance in all valve classes, even if it is a reduced pneumatic ball valve, its fluid resistance is quite small.
- Thrust bearing reduces the friction torque of the valve stem, which can make the valve stem operate smoothly and flexibly for a long time.
- Sealing performance of the seat is good, the sealing ring made of polytetrafluoroethylene and other elastic materials is easy to seal, and the sealing capacity of the pneumatic ball valve increases with the increase of the medium pressure.
- Valve stem seal is reliable, because the valve stem is only as if rotating without lifting movement, the packing seal of the valve stem is not easy to destroy, and the sealing capacity increases with the pressure of the medium.
- Because polytetrafluoroethylene and other materials have good self-lubrication, and the friction loss of the ball is small, so the service life of the pneumatic ball valve is long.
- Anti-static function: set the spring between the ball, valve stem and valve body, which can export the static electricity generated by the switching process.
- Lower mounted valve stem and valve stem head convex step to prevent the valve stem ejecta, such as fire caused by the valve stem seal damage, the convex step and the valve body can also form metal contact to ensure the valve stem seal.
